Drop Hammer Impact Testing Apparatus, >40Hs Hammer Blade Hardness (Shore Hardness), Used to Determine The Adhesion of Coating Surfaces.

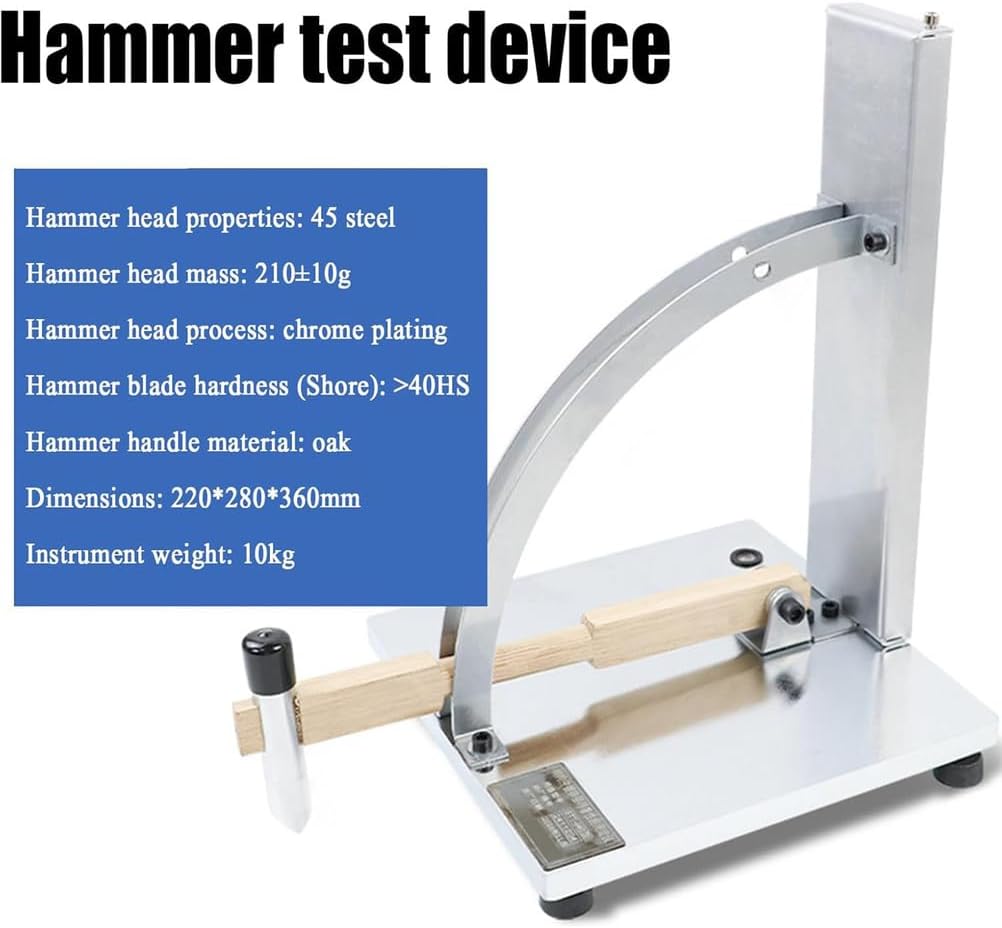

Product specifications:Product name: Galvanized layer hammer test deviceHammer process: chrome platingHammer nature: 45 steelHammer mass: 210±10gVertical height from the center line of the hammer to the bottom surface: 300±1mmHammer blade hardness (Shore): >40HSHammer handle material: oakHammer handle mass: 70±10gStorage environment: temperature (20±5)°C humidity <80%RHBase size: 220*280*16mmOverall dimensions: 220*280*360mmInstrument weight: 10kgWeight: 15kgPacking list:Host*1

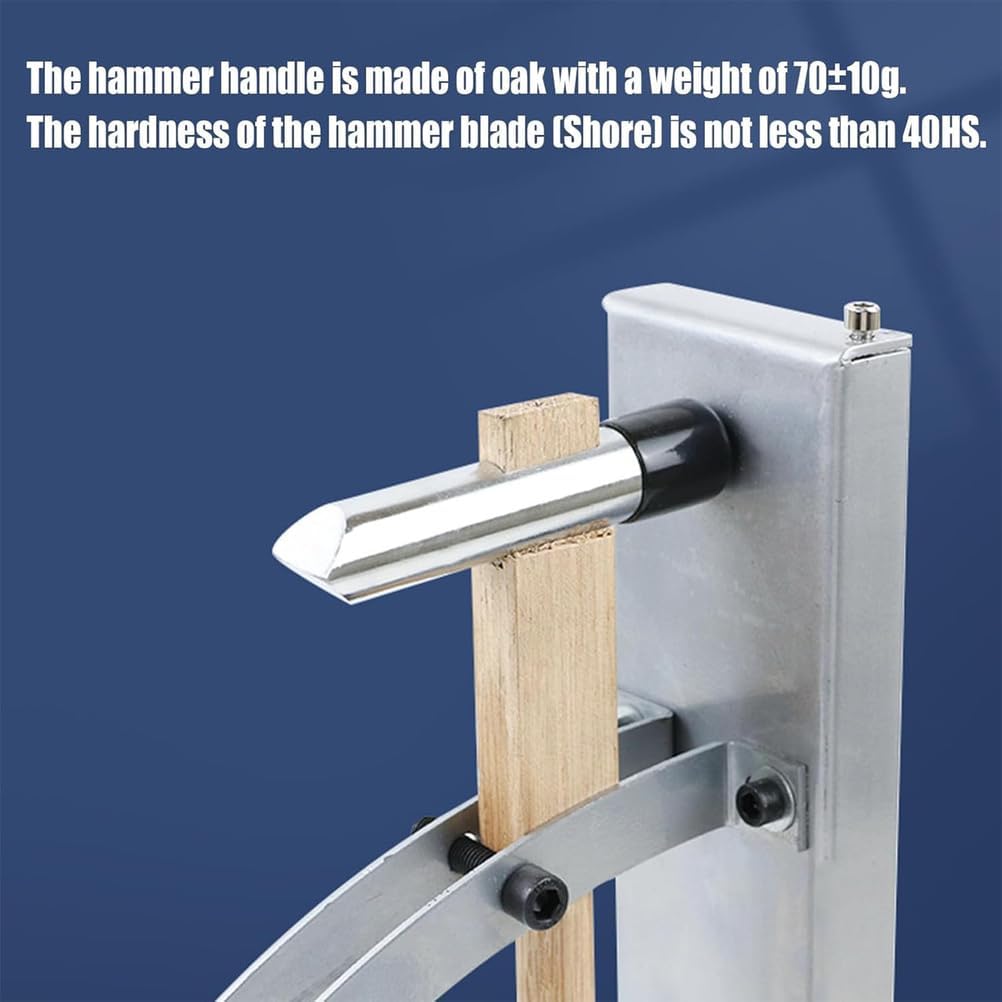

• [Hammer head and handle]: Hammer handle material: oak, hammer handle mass: 70±10g, hammer head and handle are firmly combined, and the hammer head moves flexibly between the base and the handle.

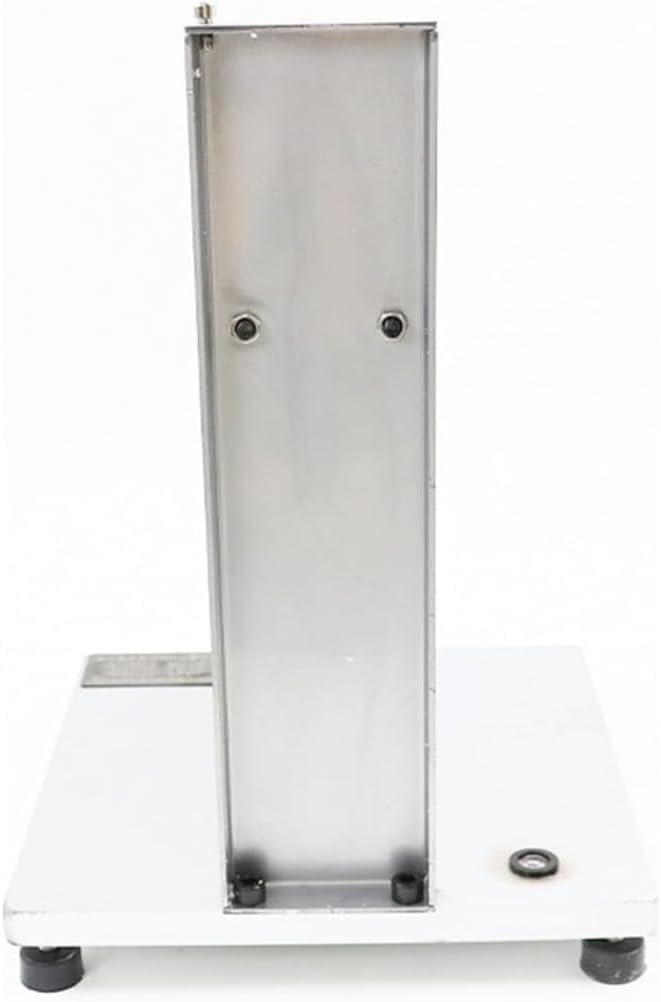

• [Adhesion tester]: The surface of this adhesion tester is smooth, flat, and burr-free. The base is thickened, more stable and firm, stable in operation, and accurate in testing.
• [Parameters]: Hammer head mass: 210±10g, hammer head properties: 45# steel, vertical height from the center line of the hammer head to the bottom surface: 300±1mm.
• [Purpose]: Hammer blade hardness (Shore): >40HS, this adhesion tester is suitable for hot-dip galvanized coating adhesion test.
• [Application]: This adhesion tester is suitable for small-scale and laboratory scenes. Used to determine the adhesion of coatings, paints, and electroplated surfaces.
